Chip aligner

Precision Equipment
Various development equipment

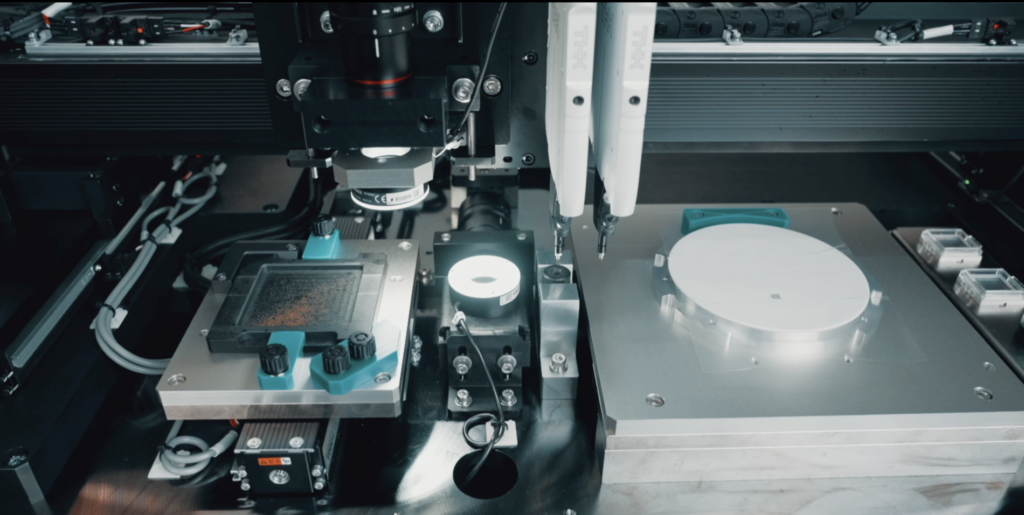

Reliable alignment of even the smallest chip

Automatically transfers and aligns 0.5 mm chips.
Only the specified side of the chip is detected during pick-up.
After pickup, position correction, accuracy correction, color identification, and target chip search are performed.
The chips are then aligned at equal pitch intervals.

Promotion Movie

Features

Pick-up and alignment of chips can be done in about 5 seconds.
Chip spacing can be set ±10u ±1 degree.

Inquiry for details

If you are interested in introducing the equipment, please contact the person in charge below.

Sales Department 2, Kobe Head Office
E-mail：t_hayakawa@seishin-syoji.co.jp
